Universal Testing Machine


Shanta Universal Testing machine is designed for testing Metals and other materials underTension , Compression, Bending, Transverse and Shear loads. Brinell Hardness Test on metals can also be conducted in smaller capacity UTM's.

All Shanta Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of manufacturing. Every machine is than calibrated over each of its measuring range in accordance with the procedure laid down in BS 1610 and IS 1828. and comply with Grade A and Class 1.0 respectively





Shanta Universal Testing Machine are hydraulically operated.
Series SE-UTE is manually controlled with Microprocessor based Measuring Panel.
Through RS232 it can be connected to PC for on-line graphic display and data storage, Test report generation and many other features as per customer requirement.
Series SE-UTES is Computer controlled with computerized measurement.
Electronic Clip-on Extensometer can be attached to above machines for measurement of Modulus of Elasticity (MOE) and Proof Stress.
Wide range of accessories comprising Standard and Special accessories are available.

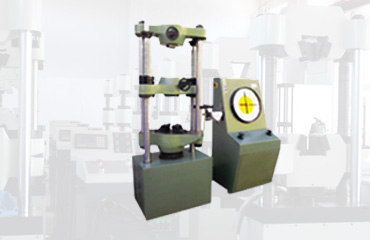

ELECTRO-HYDRAULIC UTM WITH DIAL DISPLAY AND AUTOGRAPHIC RECORDER.



Shanta Universal Testing Machine are hydraulically operated.
Series SE-UTN is manually controlled with Dial display. Dummy Pointer is provided to register peak load. Autographic recorder is attached to machine that gives Load-Displacement curve on a continuous chart paper.
Mechanical Clip-on Extensometer can be attached to above machines for measurement of Modulus of Elasticity (MOE) and Proof Stress with the help of manually drawn Load-Displacement curve.
Wide range of accessories comprising Standard and Special accessories are available.


MECHANICAL EXTENSOMETER


Gauge Length (In steps): 30-120mm
Measuring Range: 0-3mm
Specimen Thickness/Dia.: 1 to 20mm
Resolution: 0.01mm

ELECTRONIC EXTENSOMETER


Gauge Length: 25mm & 50mm
Measuring Range: 0-2mm
Specimen Thickness/Dia. 0.5 to 30mm
Resolution: 0.001mm


TECHNICAL DATA SERIES SE-UTN
MODEL SE-UTM-10 SE-UTM-20 SE-UTM-40 SE-UTM-60 SE-UTM-100
Maximum Capacity (KN) 100 200 400 600 1000
Load ranges 4 4 4 4 4
Measurement Range 2-100%FN 2-100%FN 2-100%FN 2-100%FN 2-100%FN
Accuracy Class as per BS-1610 & IS1828 Class 1.0 Class 1.0 Class 1.0 Class 1.0 Class 1.0
Clearance for Tensile (mm) 50-700 50-700 50-700 50-800 50-850
Clearance for Compression
test (mm)
0-700 0-700 0-700 0-800 0-850
Clearance between Columns
(mm)
500 500 500 600 750
Ram Stroke (mm) 150 200 200 250 250
Straining/piston Speed at no
load (mm/min)
0-300 0-150 0-150 0-100 0-80


Model SE-UTM-10 SE-UTM-20 SE-UTM-40 SE-UTM-60 SE-UTM-100
HP 1.5 1.5 2.5 2.5 3.5
Power Supply 400-440V,
50Hz,3-Phase
400-440V,
50Hz,3-Phase
400-440V,
50Hz,3-Phase
400-440V,
50Hz,3-Phase
400-440V,
50Hz,3-Phase
Dimension (LXHXH) 2032 X 750 X 1960 2032 X 750 X 1960 2060 x 750 x 2180 2265 x 750 x 2534 2415 x 815 x 2900
Weight (kgs) 1500 1500 2500 3500 5500


MODEL SE-UTM-10 SE-UTM-20 SE-UTM-40 SE-UTM-60 SE-UTM-100
For Tension Test
Clamping jaws for round specimen Dia, (mm) 10-20
20-30
10-20
20-30
10-25
25-40
10-25
25-40
40-55
10-25
20-45
45-70
Clamping jaws for flat
specimen (mm)
0-10
10-20
0-10
10-20
0-15
15-30
0-15
15-30
0-22
22-44
44-65

Specimen Width (Max.)

50 50 65 70 70

For Compression Test


Pair of Compression Plates,
Dia (mm)
120 120 120 120 160
For Transverse Test
Table w adjustable Rollers,
Width of Rollers (mm)
160 160 160 160 160
Diameter of Rollers (mm) 30 30 30 50 50
Maximum Clearance
between supports (mm)
500 500 500 600 800
Radius  of Punch Tops (mm) 6,12 6,12 12,16 16,22 16,22

OPTIONAL ACCESSORIES : These include Load stabilizer, Brinell Test Attachment, Mechanical Extensometer,
Electronic Extensometer, Shear Test Attachment, 1800 Bend Test Attachment etc.
