Universal TensileTesting Machine - Twin Column

Introduction

Shanta Engineering Universal Testing Machines are electro mechanical machines with digital display of load & displacement & pulley belt system for changing speeds. The machines are designed for testing various materials like rubber, plastics, cables, leather, paper, plywood and metals. Tension, compression, bend and flexural tests can be performed on these machines with suitable grips and fixtures. The machines are powder coated for elegant look. The critical components are plated for rust prevention and durability.

Main Features :

  • Front panel membrane type keyboard for test set up
  • 7 segment digital display of load and displacement.
  • Storage of important parameters such as peak load, braking load and max. displacement
  • Facility to return of crosshead to home position for next test.

Electronic Control Panel :

  • Selection of different speeds by pulley belt system
  • Facility to mount different load cells.
  • Facility to mount various grips / fixtures for different tests and materials like rubber, plastics, cables, leather, paper, plywood and metals

Note :

  • Over load & over travel protection is standard.
  • Lower capacity load cells can be used with any machine for better load resolution.
  • Grips can be selected from wide range available for different application.

Special Options :

  • Load cells of different capacities are available as optional items.
  • Displacement resolution of 0.1 mm is optional
  • Compression, Bending & flexural attachment to suit specific tests is available as optional.
  • A.C. Variable speed is available as optional.
  • P.C. interface is optional.
MODEL NO. SET-T 1000 N SET-T 5000 KN SET-T 10 N SET-T 20 KN SET-T 50 KN
Max. Capacity (KN) 1 5 10 20 50
Load Resolution (N) 1:10,000 0.1 0.5 1.0 2.0 5.0
Max. Crosshead displacement without grips / fixtures (mm) 900 900 800 700 700
Displacement Res. (mm) 0.2 0.2 0.2 0.2 0.2
Column Clearance (mm) 450 450 450 450 450
Test Speeds (mm/min) 50,100
250,500
50,100
250,500
30,50,100 30,50,100 30,50,100
Machine Dimensions
mm ( W X D X H)
900 X 600 X 2000 900 X 600 X 2000 900 X 600 X 2000 900 X 600 X 2000 900 X 600 X 2000
Power Requirement 0.3 KVA 0.5 KVA 0.1 KVA 2.0 KVA 2.5 KVA
Power Supply 415 V +/- 10%, 3-Phase, 50Hz with Neutral & Earth

Grip And Fixtures :

  • Grips for flat and round specimen with different inserts.
  • Vice type grips.
  • Pneumatic grips.
  • Fixture for bend test / flexural test.
  • Sheat test attachment.
Melting Point Apparatus
Melting Point Apparatus
Melting Point Apparatus
Melting Point Apparatus

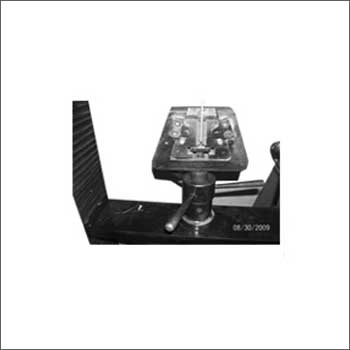

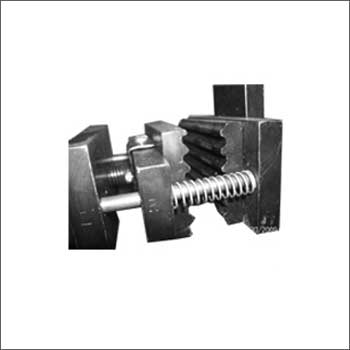

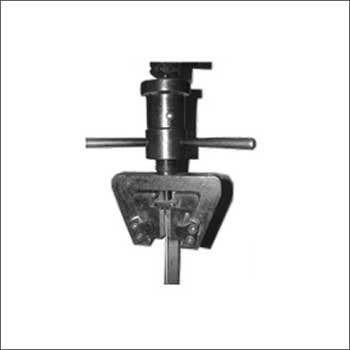

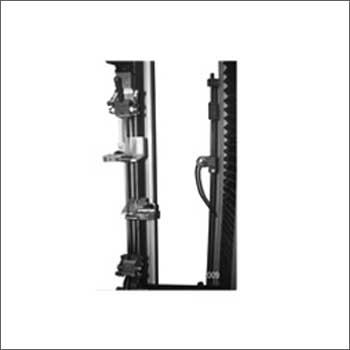

Grips :


  • SEG 5.1 For dumbell shape specimen of PVC, rubber and polyethylene Inserts knurling. Max. Specimen size - 35 mm wide x 4 mm thk.
  • SEG 5.2 For strips of PVC Rubber and polyester films. Inserts with rubber lining. Max. Strip Size - 50 mm wide X 4 mm thk
  • SEG 5.3 For plywood and asbestos. Inserts with fine knurling. Max. Specimen size = 100 mm wide X 4 mm thk
  • SEG 5.4 For rigid metal wire (1.0 mm dia to 6.0 mm dia )
  • SEG 5.5 For rigid metal strips inserts with knurling. Max. Strips size = 15 mm wide x 6 mm thk
  • SSEG 5.6 For flexible metal wires 20 SWG and finer.
  • SEG 5.7 For flexible rubber cords between 10 to 15 mm dia.
